Canyon Speedmax CFR AXS review

Every athlete knows that if you stand still, you fall behind,” says Canyon in reference to the development of their overhauled Speedmax triathlon bike.

Much like the continually improving pro triathletes they sponsor (see recent Ironman world champions Jan Frodeno and Patrick Lange), Canyon decided it was time to get ahead of the game and set themselves the ‘toughest challenge in triathlon’, namely to make a bike that has had the men’s Ironman world champion sat atop of it for five years in a row even better and even faster.

As well as their in-house team, Canyon called upon 11 other brands and experts to perfect the Speedmax (when we first tested it in 2021 it came with an RRP of £12,949, but is now available from $10, 569 / £10,029).

These included aerodynamics specialists Swiss Side, with Canyon claiming that the Speedmax project was “the most comprehensive aerodynamic development process of any bike ever at Swiss Side’s facilities”.

In the wind tunnel, Canyon put a bespoke set of carbon-fibre spinning dummy legs on the bike to provide the most accurate readings.

Testing at speeds of 28mph / 45km/hr, Canyon say the new top-of-the-range Speedmax CFR (Canyon Factory Racing) model that we have on test saves eight watts over the outgoing Speedmax CF SLX.

Testing with the bike alone it increased to 8.9 watts and, with pro athletes on board, they say it was as much as 10 watts. This is a significant amount at the pointy end of racing, worth up to 2:30mins over 112mi / 180km according to Canyon’s engineers.

Canyon also claim the new entry-level Speedmax CF is pretty much just as aero as the previous top-end Speedmax CF SLX as used by Jan Frodeno and co.

So, even if your budget is less than a third of what the top-end CFR model costs, Canyon claim you’re still getting aerodynamics that were good enough for a quintet of Kona victories.

Canyon Speedmax CFR AXS tech and specs

The Speedmax is now disc brake-only through the CFR, CF SLX and CF SL ranges. All CFR and CF SLX bikes come with power meters, with SRAM’s Red AXS power crankset and 13-speed Sram Red AXS shifting on the current model.

The frameset is striking and UCI-illegal, with chunky, angular tube shapes dominating throughout.

Massive fork legs provide a fairing over the disc brake caliper and, at the rear, the dropped seatstays are in line with the fork for cleaner airflow.

Canyon say weight, comfort and performance in crosswinds were all considered through every stage of the R&D process.

It meant features such as the new integrated hydration system and toolbox also serve to balance out the weight distribution of the bike, and the integrated top-tube bento box (which is actually carved out inside the top tube) reduces the surface area of the cockpit and forks.

To further improve comfort, all Speedmax bikes come with a 28mm rear tyre and 25mm on the front. On our top-end bike they’re fitted to the distinctive Zipp 858NSW deep-dish wheels.

Canyon’s new cockpit, with an unusual ‘mono extension’ that they say looks tidier than two individual extensions and allows for more adjustment, further reduces the frontal area.

Interestingly, the grips can be adjusted independently of the extension for perfect wrist position. The aerobars move up, down, back and forth, allowing you to alter stack by using the supplied fitting kit, and the mono extension adjusts between 35mm and 52mm to dial in your reach.

If this Speedmax still isn’t expensive enough, you can upgrade to full-length Ergon armrests as used by Jan Frodeno for another €299.

Unless you’ve gone for a frame two sizes too big or small, geometry almost starts to become a moot point on a bike this adjustable because it allows you to make considerable changes to your position.

On my medium frame, a 51.9cm top tube and 8.3cm head tube with seat and head angles of 80.5° and 73°, respectively, adds up to a fairly low and aggressive ride. Yet the sliding aero seatpost and hugely adjustable cockpit means that your reach, seat angle and arm position can be all be altered significantly if you want to be more upright, super low or anything in between.

While we were confident the new Speedmax was never going to disappoint, we were expecting something special to justify that huge price tag. T

esting during the winter months of a pandemic meant I couldn’t try the bike out in a race situation, but I did put in plenty of miles, test out all the tri-specific trickery and attempted to replicate how we would use it in a race.

Integral storage

The integrated storage is integral to what the Speedmax has to offer, and we spent more time than we’d care to admit tinkering with the features before hitting the road.

Other than the supplied rear cage and two bottle mounts inside the main triangle, your nutrition, 700ml of fluid and flat kit are all housed inside the chassis.

To demonstrate just how far tri bikes have progressed in five years, I attempted to load up my own 2015 Ridley Chronus with the equivalent amount of hydration, tools and gels.

With two bottles, a large top-tube bag and saddlebag needed to house everything that fits inside the new Speedmax, it looked like a bike-packing set-up in comparison.

The toolbox above the bottom-bracket area comes with a CO2 adapter and tyre levers, with additional room for two CO2 canisters and an inner tube, and the cover slides on and off with ease for speedy race-day puncture repairs.

The bento box comfortably fits in five 45g energy gels, and is probably the cleanest example of top-tube storage we’ve ever seen on a tri bike.

The top opens from right to the centre and, while this could be just us, on the road we found ourselves forgetting which way it opened a couple of times, so we taped on a small arrow to remind us… after all, when you’ve spent nearly 11 grand on a bike to propel you to victory, every millisecond counts.

Opening up the bento box also allows you to perform your next party trick, as it’s here you’ll find a button to remove the 700ml hydration bladder.

The unique system sees the bladder actually pack away into the downtube, connecting to a drinking straw and mouthpiece that attach magnetically to the mono extension when not in use. Removing the bladder allows it to be cleaned, and to fill it on the fly you simply push your bottle top down on the opening.

A capacity of 700ml isn’t a huge amount and is nowhere near the 1.5 litres Specialized’s rear-mounted ‘Fuelcell’ can hold – but it’s close to a standard 750ml bottle’s worth, which is all you’ll want to slow down for at an Ironman aid station.

At times, the magnet that clamps the straw to the mono extension appeared to be too weak. After adding Canyon’s bespoke computer mount to the extension, bending the straw around and getting it to stay in place was pretty much impossible.

Canyon told me a stronger magnet will be used going forward, so hopefully a flapping straw won’t cost Speedmax customers watts in future.

Comfort wins

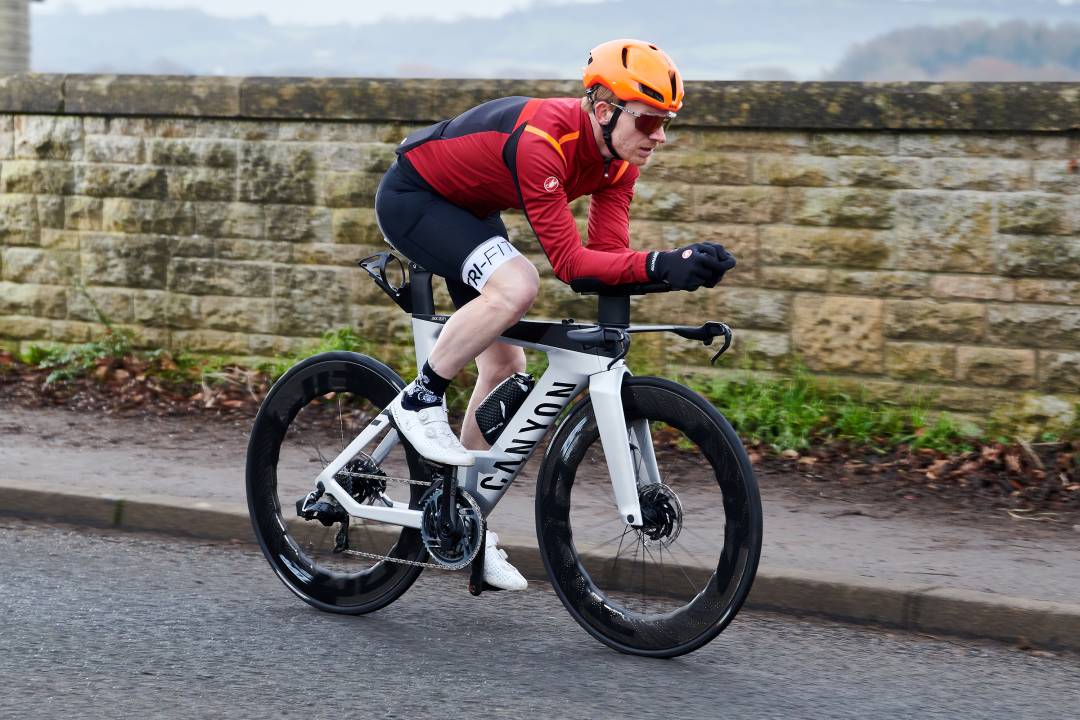

To ride the Speedmax is an absolute blast. It’s exhilarating on the flat, yet surprisingly stable and easy to handle in crosswinds, even with deep wheels.

Canyon say integration is partly to thank for the stability, as the hiding of the bento box and hydration system reduces the surface area of the bars and fork, leading to a sailing effect in tough wind conditions.

The low bottom-bracket area and chunky tubes also give the Speedmax a luxurious ride feel that dampens vibrations through rough roads, reminiscent of the hugely comfortable Quintana Roo PRSix.

The only slight discomfort was in our hands, as although the cockpit does allow for lots of adjustment, there’s not much you can do about the width of the grips.

Canyon supply two 0.5cm inserts to widen them, which I installed straight away, but still my thumbs were touching when riding in the aero position.

Although it makes for a tucked-in position that’s undoubtedly very aero, I found it was a little too narrow for me.

This set-up also took a lot of getting used to before I was fully confident staying on the bars for extended periods on rough British roads.

Things were a different story at the base bars, as I found them very comfortable and ergonomic to grab onto for extended periods while climbing and descending.

I’ve found that a lot of tri bikes sacrifice base-bar comfort, perhaps because ideally you won’t be using them much, but over 180km comfort wins are always appreciated.

Going uphill, the 20lb / 9.1kg weight of the Speedmax doesn’t feel too hefty at all. Considering how much storage is included already for the weight, numerous lighter tri bikes probably end up heavier once you’ve added accessories.

It’s impressively stiff. I didn’t experience any creaking unpleasantness from the Sram DUB PressFit bottom bracket throughout the test period.

This top-end Speedmax is dripping with luxury and it’s all super bike-level stuff.

The full 12-speed Sram Red eTap groupset I tested is fast and flawless, with customisable shift buttons on the extensions and base bars, and the power meter provided accurate measurements throughout the test period.

Fizik’s Mistica is one of the best triathlon saddles, with a stubby nose for comfort in the aero position. The finest Zipp wheels are the icing on the cake when you want to go blisteringly fast.

Canyon Speedmax CFR AXS bottom line

While other top-end tri bikes launched in the last couple of years have had individual elements of what we want in a racing machine, the Speedmax comes the closest yet to ticking every box.

The integration is clever and practical, the ride superb and it’s all fairly easy to live with, featuring proprietary components that can be assembled and disassembled in a flash.

The only place I’d want more adjustability is with the super narrow extensions, but that pro armpad upgrade is available if you’re fussy.

My other gripe was with the weak magnet to hold down the hydration system straw, but Canyon insist that a stronger one will be affixed to customers’ bikes going forward.

Based on my testing I’ve no doubt the Speedmax could offer elite triathletes, and anyone else who invests in one, a serious competitive advantage.

Canyon Speedmax CFR AXS specs

Price:	From $10,569 / £10,029
Weight:	8.66kg (claimed)
Frame:	Canyon Speedmax CFR Disc; fully internal routing; integrated hydration system and toolbox; bento box
Forks:	Canyon FK0080 CF Disc, tyre clearance 30mm
Gears:	Sram Red AXS 13-speed (2025 spec)
Power meter:	SRAM Red AXS Aero power meter crank
Brakes:	Sram S-900 Aero, SRAM Paceline X 160mm rotors
Wheels:	Zipp 858NSW
Finishing kit:	Canyon CP0019 Triathlon Flatbar; Canyon GP0226 Aerobar; Fizik Transiro saddle; Schwalbe Pro One Aero Front TLE, Schwalbe Pro One Aero Rear TLE; Canyon SP0040 Aero Seatpost
Buy if…	You want possibly the most advanced triathlon bike to date and don’t care how much it costs.
